KH800G Super-thin Color Paperless Recorder
KH800G is high quality super-thin color paperless recorder (195x145x60.5mm, up to 8 channels), used the advanced technology, to be designed high quality and performance, isolated, high accuracy, universal use, to be aimed to monitor, record, analysis the processes in various industry application.
Application
Petroleum, Chemical, Pharmaceutical, Metallurgy, Paper, Electricity, Nuclear power, Food, Cement, Building, aviation, Medical University lab, Marine, Sewage treatment etc

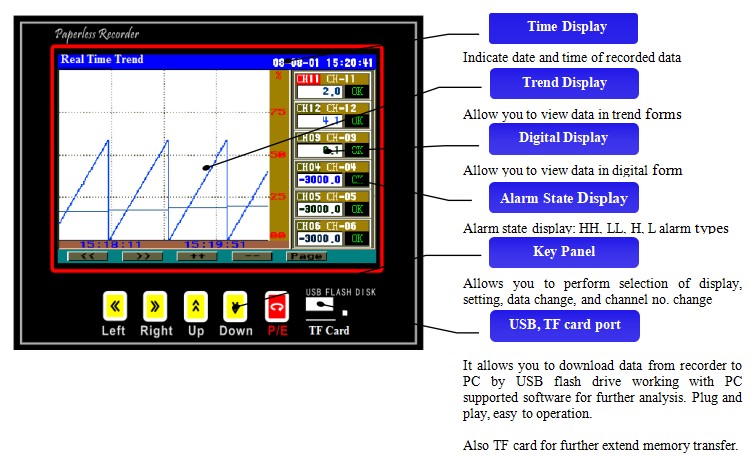

Front Panel

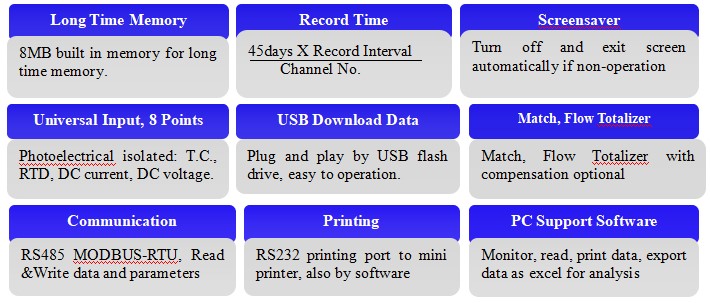

Features

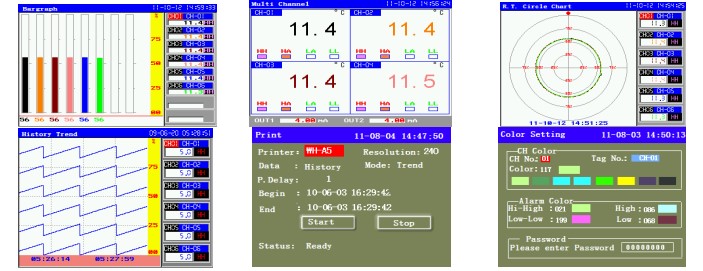

Various Displays

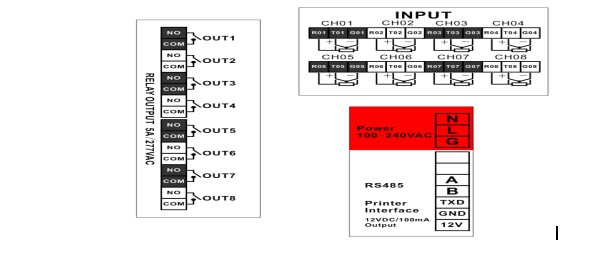

Connection
Introduction
KH800G color paperless recorder (1195x145x60.5mm, up to 8 channels ) is color TFT LCD display; completely isolated universal input such as thermocouple, thermal resistance, current and voltage, frequency input, can support multi-loop flow totalizer with automatic temperature and pressure compensation function; adopts modular structure output functions such as alarm, auxiliary power supply for sensors output, retransmission, print and communication etc. Measuring data can be displayed in various types, such as graphic display as bar-graph, real-time trending, history trending memory, real time circular chart, history circular chart memory and alarming state display. also can be printed in curve and data by mini printer through RS232 port ; At the same time, it also provides features to check the data’s of year, month, day, hour, minute, second directly. Recorder can be configuration with OPC server, SCADA system and other professional software with MODBUS-RTU communication protocol through RS485 port. The history data can be downloaded directly by USB flash drive, plug and play, easy and flexible. PC supported data analysis software can print the data in curve and output Excel format for further analysis..

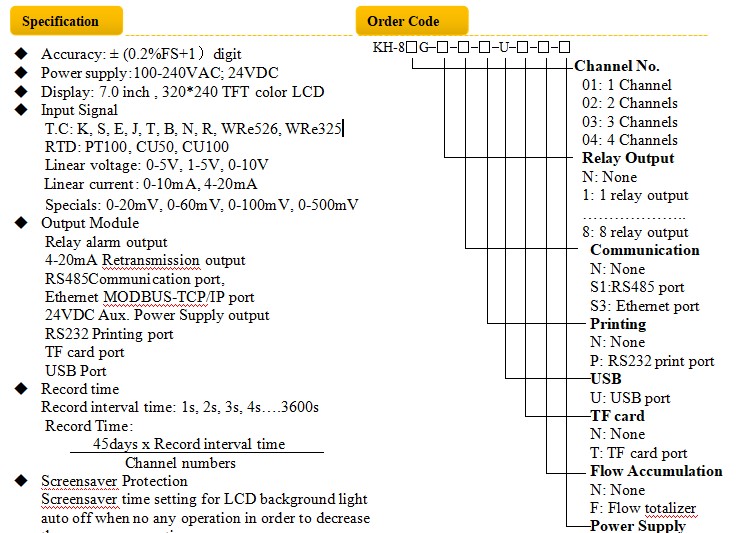

Specification
Application
Petroleum, Chemical, Pharmaceutical, Metallurgy, Paper, Electricity, Nuclear power, Food, Cement, Building, aviation, Medical University lab, Marine, Sewage treatment etc
Front Panel
Features
Various Displays
Connection
Introduction
KH800G color paperless recorder (1195x145x60.5mm, up to 8 channels ) is color TFT LCD display; completely isolated universal input such as thermocouple, thermal resistance, current and voltage, frequency input, can support multi-loop flow totalizer with automatic temperature and pressure compensation function; adopts modular structure output functions such as alarm, auxiliary power supply for sensors output, retransmission, print and communication etc. Measuring data can be displayed in various types, such as graphic display as bar-graph, real-time trending, history trending memory, real time circular chart, history circular chart memory and alarming state display. also can be printed in curve and data by mini printer through RS232 port ; At the same time, it also provides features to check the data’s of year, month, day, hour, minute, second directly. Recorder can be configuration with OPC server, SCADA system and other professional software with MODBUS-RTU communication protocol through RS485 port. The history data can be downloaded directly by USB flash drive, plug and play, easy and flexible. PC supported data analysis software can print the data in curve and output Excel format for further analysis..
Specification
